Description

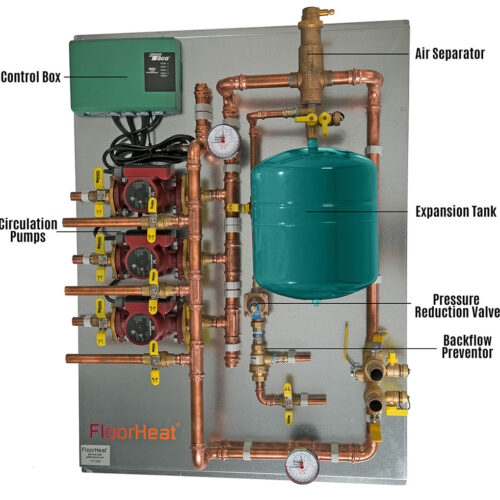

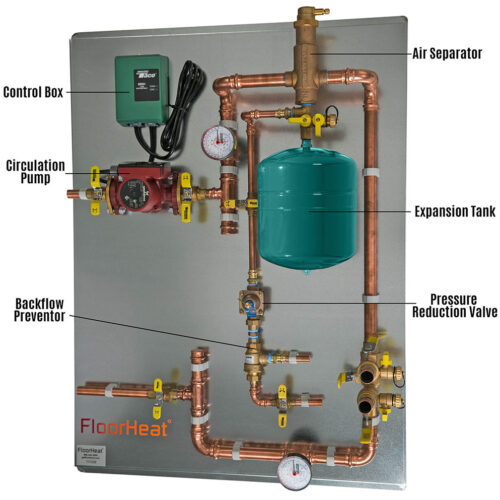

Prefabricated Distribution/Control Panel helps to simplify your radiant heat installation. Our distribution panels for radiant heat have all the necessary components to operate radiant systems and pass local building codes. The FloorHeat professionally preassembled hydronic heating control panels save time and money. On-site work will be minimized to connecting your supply and return lines to the boiler and manifolds, electrical wiring, and providing make-up water supply. No soldering is required. Additionally, pumps can be added to the panel making them easily expandable from 1 to 2, 3, or 4 zones. Priming the radiant floor system and priming the boiler is convenient and easy. The 1″ copper tubing is large enough to accommodate both large and small projects. All panels are pressure tested prior to leaving our facility and carefully packaged to assure safe delivery.
Specifications
| Specification | Essential Series |
| Panel configuration | 4 independently circulated heating zones |
| Construction and control | Professionally assembled 1-inch copper piping on a wall-mounted steel backplate with Azel iLink relay |
| Circulation and flow | 4 dedicated zone circulators; up to 10 GPM per zone, subject to system design |
| Tubing compatibility | 1/2-inch PEX or PEX-AL-PEX recommended; 5/8-inch PEX supported |
| 1/2-inch loop capability | Up to 10 loops per zone, 300 ft per loop; up to 40 loops across 4 zones |
| 5/8-inch loop capability | Up to 8 loops per zone, 400 ft per loop; up to 32 loops across 4 zones |
| Fluid connections and fill | Glycol or non-glycol systems; 1-inch connections with isolation valves. Automatic fill, backflow-prevention, and blow-off components are supplied separately as required. |
| Testing | Pressure tested before shipment |
| Overall dimensions | 32.5 in. W x 44 in. H x 12 in. D |
| Installation | Wall mounted; final plumbing and electrical work required |
| Warranty and returns | 1-year manufacturer warranty; 90-day returns subject to FloorHeat policy |
