Description
Features
- Professional-grade construction: Thicker-walled Type L copper provides added durability for long-term residential heating applications.
- Premium components: High-quality brass valves, fittings, air-management components, controls, and circulation equipment are selected for dependable system operation.
- Professionally preassembled: Major panel components are mounted and piped before shipment, minimizing field assembly and eliminating panel-side soldering.
- Independent zone circulation: Includes 2 dedicated circulation pumps for individual temperature control and balanced heat delivery.
- Integrated system protection: Includes pressure monitoring, pressure relief, air separation, automatic air venting, backflow prevention, and pressure-reducing fill components.
- Pressure tested before shipment: Each completed panel is tested as part of FloorHeat’s quality-control process.
- Glycol compatible: Designed for properly configured glycol or non-glycol hydronic systems.
- Compact wall-mounted design: Organizes key system components on a 32.5-inch-wide by 44-inch-tall steel backplate.
- S.-based technical support: FloorHeat can assist with system planning, layout questions, and installation guidance.

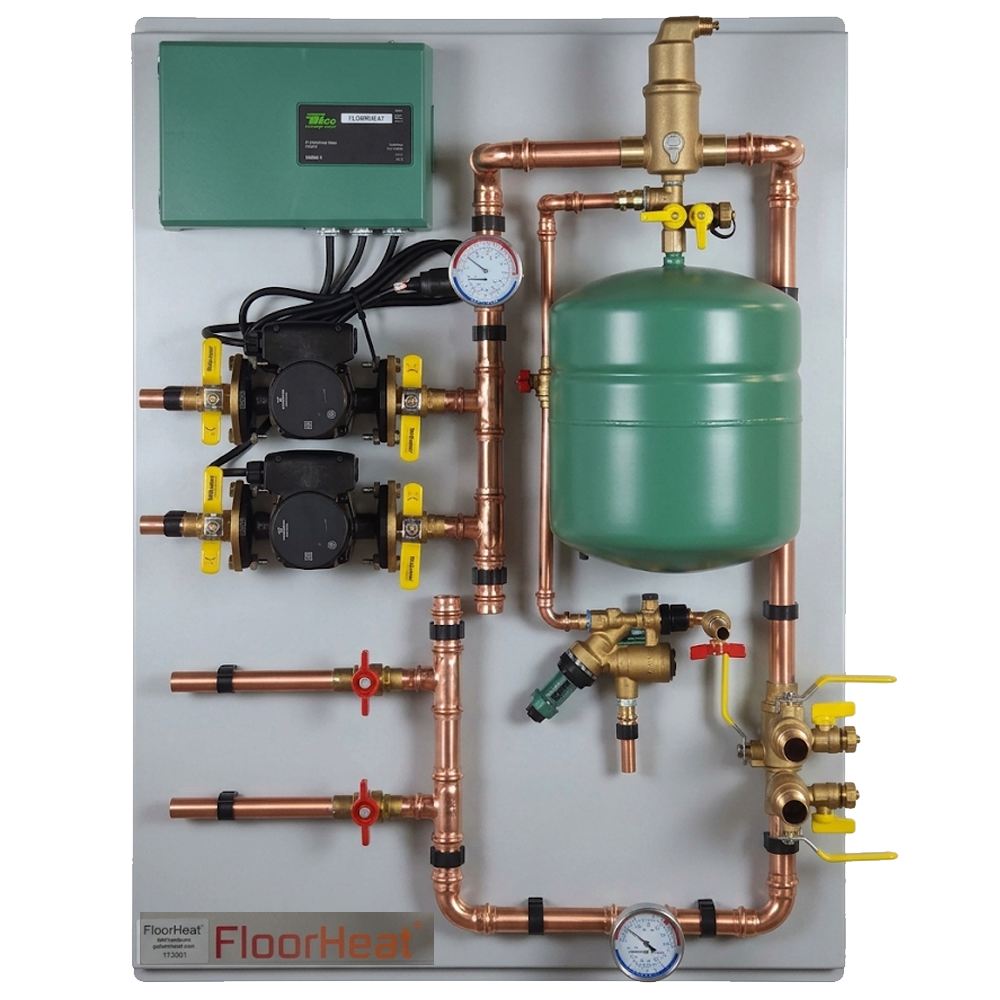

Simplify a premium residential radiant heating installation with the FloorHeat Professional Series 2-zone Hydronic Radiant Heat Distribution and Control Panel. Designed and professionally assembled in Lansing, Michigan, this panel consolidates the major circulation, air-management, fill, safety, and control components of a hydronic radiant system into one organized wall-mounted assembly.
The Professional Series is distinguished by its durable construction. Its 1-inch piping is made from thicker-walled Type L copper, and the panel uses premium valves, fittings, and hydronic components selected for reliable long-term performance. The organized layout also keeps important service points visible and accessible, supporting easier system monitoring, maintenance, and troubleshooting.
This 2-zone model uses 2 dedicated circulation pumps so each heating zone can operate independently when connected to the appropriate thermostats, manifolds, heat source, and controls. The panel supports 1/2-inch and 5/8-inch PEX distribution systems. With properly selected manifolds and system design, each zone can support up to 10 loops of 1/2-inch PEX at lengths up to 300 feet per loop, or up to 8 loops of 5/8-inch PEX at lengths up to 400 feet per loop.
Because the panel arrives preassembled and pressure tested, field work is reduced primarily to mounting the panel; connecting the boiler or other compatible heat source, supply and return piping, manifolds, make-up water, and electrical controls; and commissioning the system. Final system sizing, water temperature, flow, boiler capacity, electrical connections, and code compliance must be verified for the specific project
Specifications
| Specification | Professional Series |
| Panel configuration | 2 independently circulated heating zones |
| Construction and piping | Professionally assembled 1-inch Type L copper on a wall-mounted steel backplate |
| Circulation and flow | 2 dedicated zone circulators; up to 10 GPM per zone, subject to system design |
| Tubing compatibility | 1/2-inch PEX or PEX-AL-PEX recommended; 5/8-inch PEX supported |
| 1/2-inch loop capability | Up to 10 loops per zone, 300 ft per loop; up to 20 loops across 2 zones |
| 5/8-inch loop capability | Up to 8 loops per zone, 400 ft per loop; up to 16 loops across 2 zones |
| Fluid and connections | Properly configured glycol or non-glycol systems; 1-inch supply and return connections with isolation valves |
| Testing | Pressure tested before shipment |
| Overall dimensions | 32.5 in. W x 44 in. H x 9.5 in. D |
| Installation | Wall mounted; final plumbing and electrical work required |
| Warranty and returns | 1-year manufacturer warranty; 90-day returns subject to FloorHeat policy |
