Description
Price reflects $4.99 PER Square Foot ( indicate total SQ FT needed in quantity box), includes S&H fees.
NOTE: entry box may only show 3 digits upon checkout, even if higher quantity is ordered (above 999). True quantity will be reflected upon checkout.

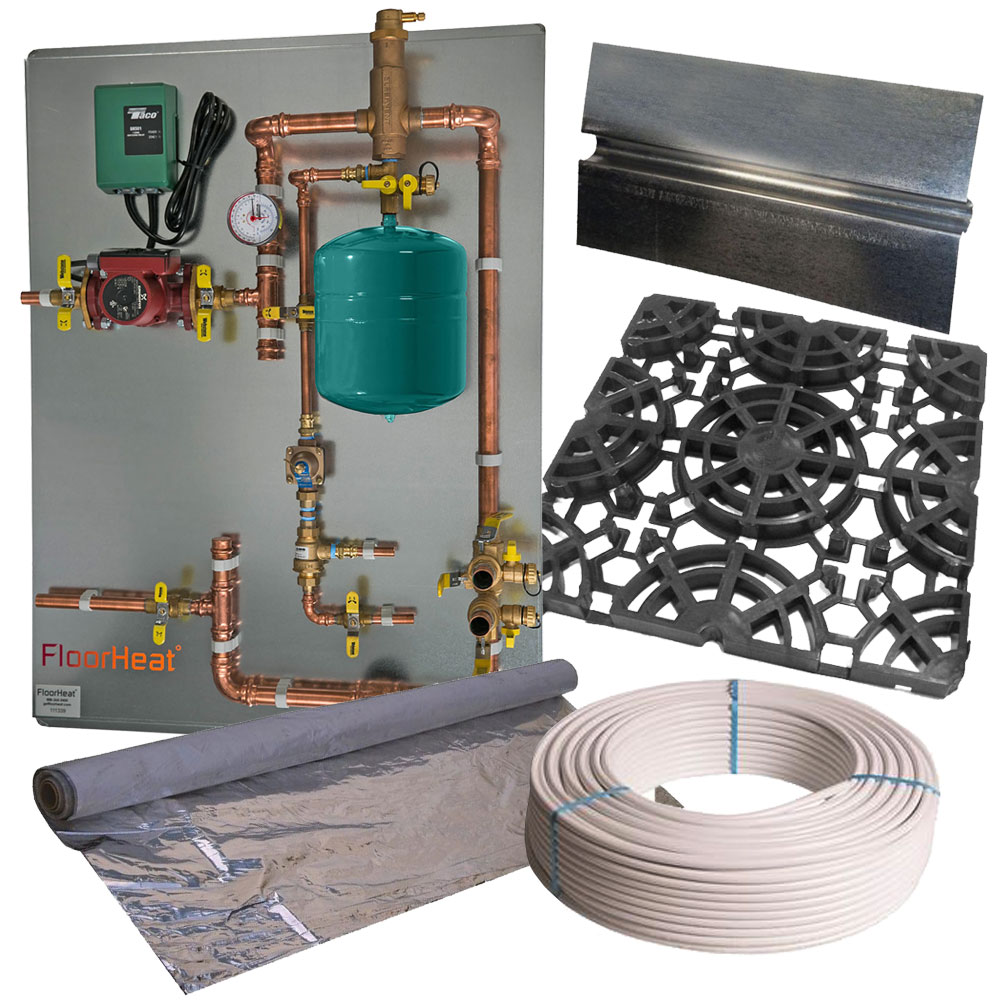

A complete solution for adding radiant heat to your current home or new construction. The system includes the reflective foil that goes down first, then install the interlocking plastic grid, insert the heat plates, and then the aluminum pex tubing. We will supply a detailed tubing layout and the correct amount of each component based upon your floor plan. (Note: Heat source; boiler or water heater purchased separately).
Thermal Reflecting Foil is ideal for use as a vapor barrier and as a radiant barrier. It is 48 in. wide. Increases overall comfort.
The Grid Module design is ideal for both first and second- floor installations. They are mold, mildew and moisture resistant. The grid module design allows for 8 in. on center design.
Aluminum Heat Plate 11 in. long x 6 in. wide. Perfect for heat distribution in staple up radiant floor applications and should also be used with EasyFloor® Grid Module. The heat plate will accommodate 1/2 in. or 5/8 in. PEX tubing.
Tubing Included.

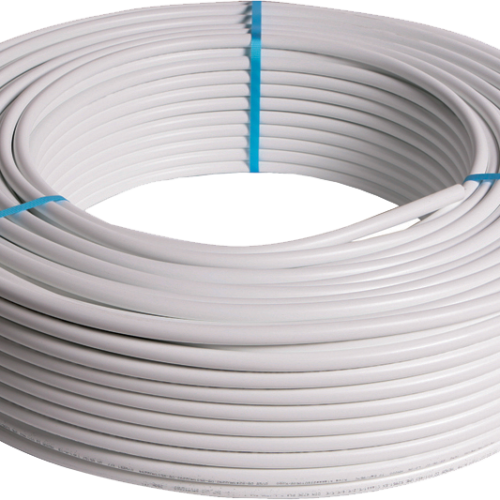

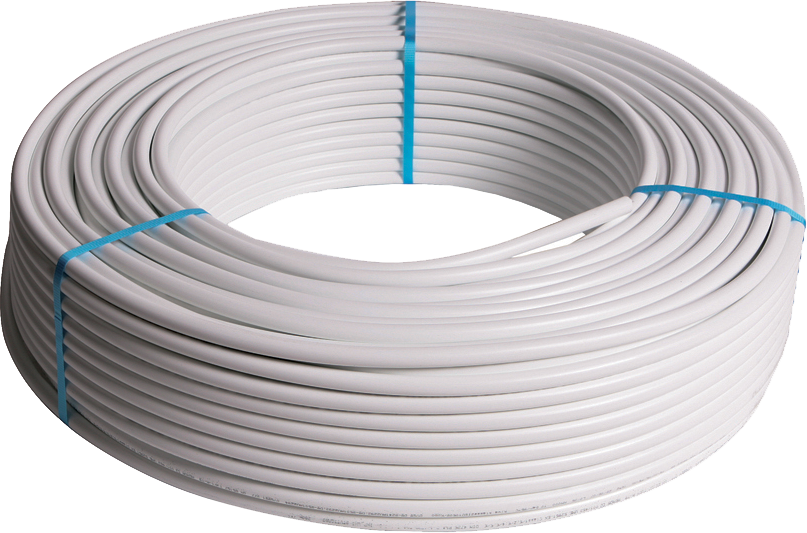

Pex-AL-Pex tubing adds aluminum outer layers to the tubing to provide form stability and an oxygen barrier.
*Upon confirmation of EasyFloor square footage purchase, customer will be emailed a coupon code discount good toward the purchase of the Distribution Panel of their choice. Panel purchase must be made separately using the emailed coupon code sent after confirmation of the EasyFloor purchase.
