Modular Control Panel System
Build Your Radiant Heating System One Zone at a Time
The FloorHeat Modular Control Panel System gives you complete flexibility to design your hydronic radiant system exactly how you want it—without paying for components you don’t need.
Start with a single zone and expand anytime. Add panels as your project grows. Keep everything clean, organized, and easy to service.
A Smarter Way to Build Radiant Heat Systems
Unlike traditional pre-assembled panels, this modular system lets you build your system piece by piece:
- Add only the zones you need
- Expand later without reworking your system
- Keep everything accessible and easy to service
Perfect for homeowners, remodels, and phased installations.

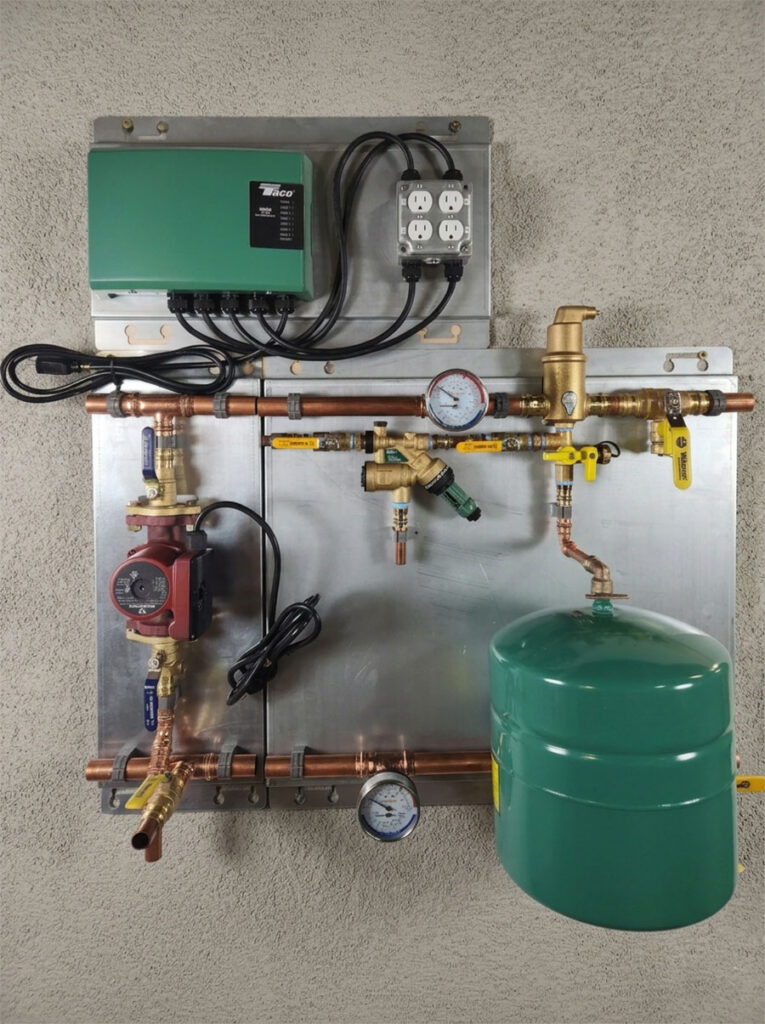

How it Works
The system is made up of three simple components. Click a panel to learn more about each component:

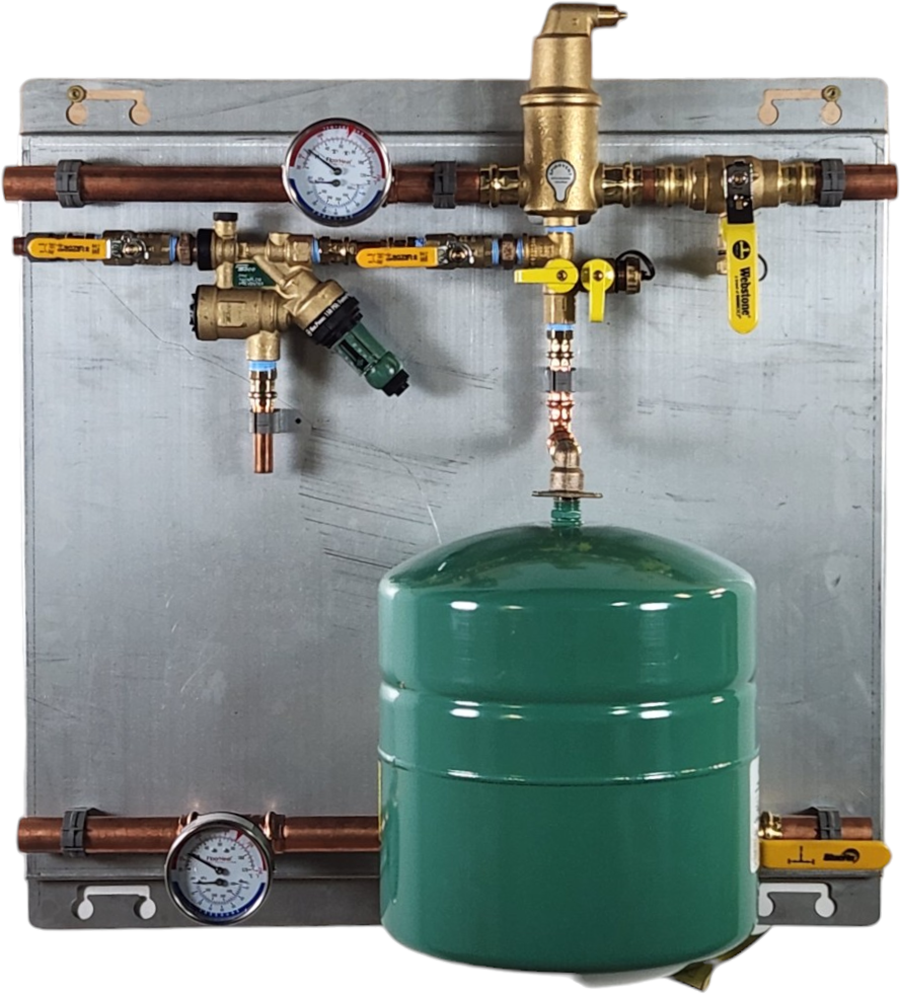

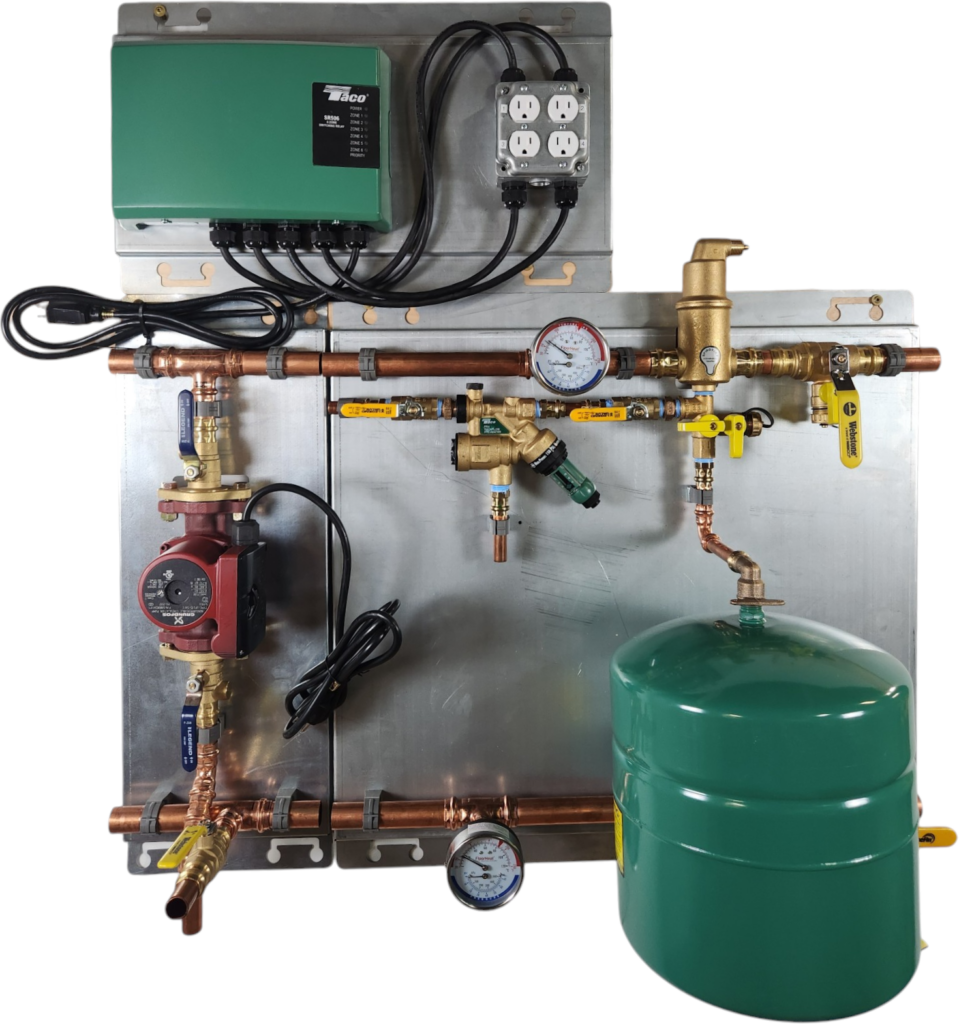

Master Control Panel
The foundation of your system.
Includes:
- Air separator
- Expansion tank
- Automatic fill & backflow prevention (Taco Combi)
- Primary loop connections
This panel manages system pressure, air removal, and overall operation.

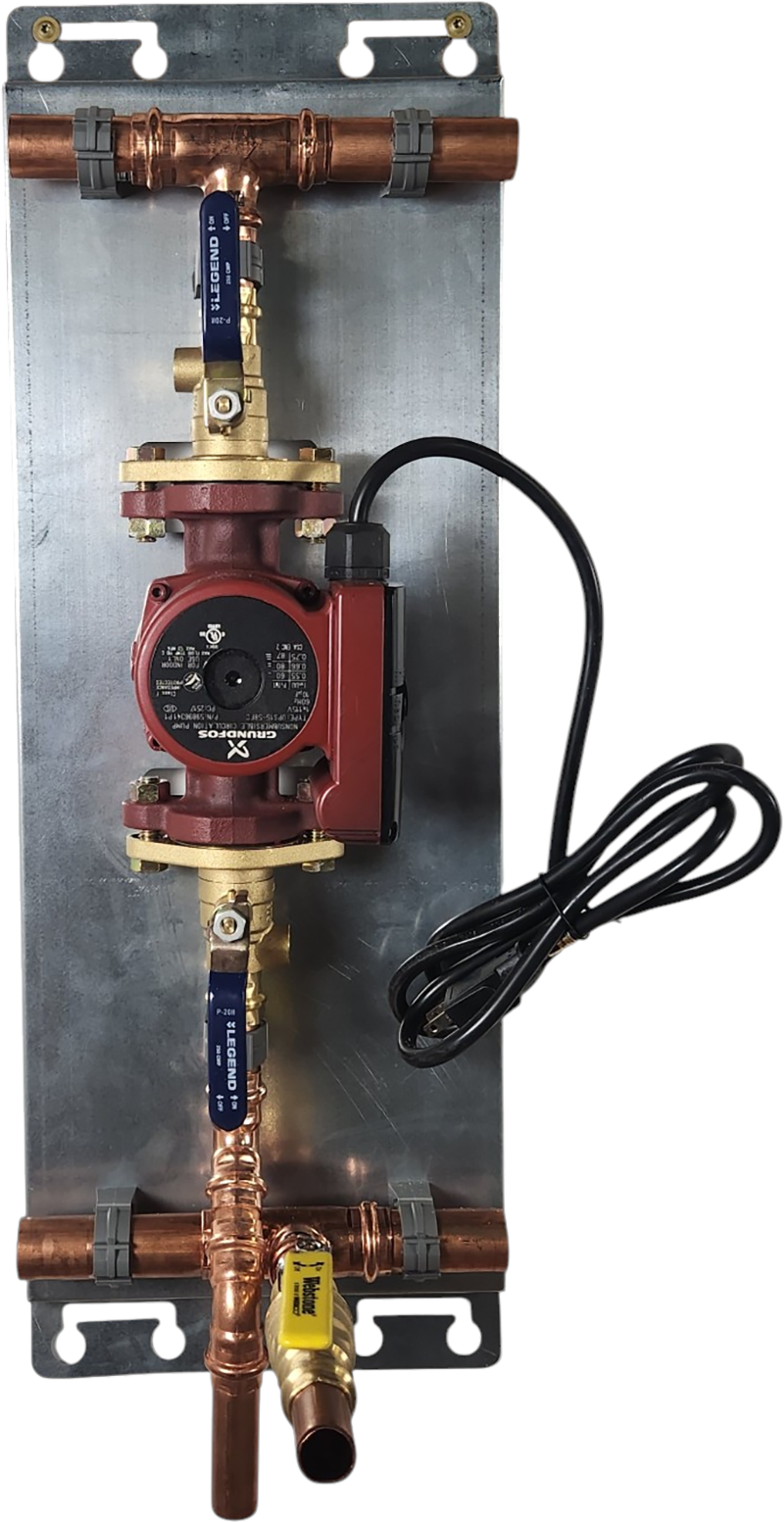

Zone Pump Panels
One panel per heating zone.
Includes:
- Circulator Pump
- Isolation Valves
- Supply & return connections aligned with the master panel
Panels mount side-by-side and connect directly across for a clean, straightforward install.

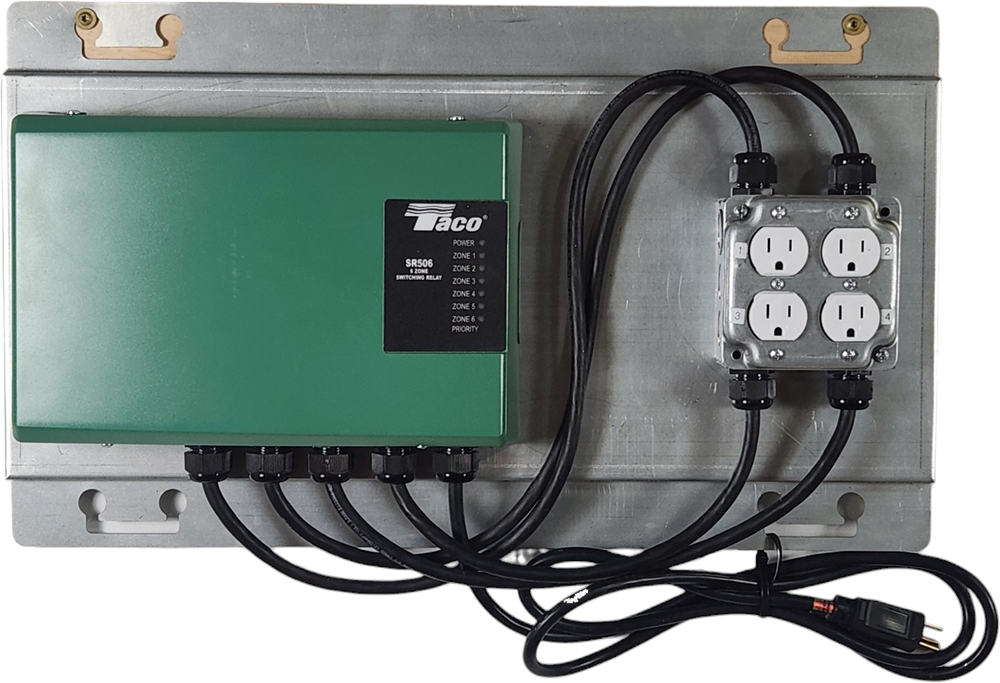

Control Relay Panels
Matches your number of zones.
Includes:
- Pre-mounted relay
- Integrated outlet box
- Plug-and-play connections for pumps
Simplifies wiring and keeps your system organized.
Start Small.
Expand Anytime.
Install one zone today and add more later—without replacing your system. This modular design makes it easy to:
- Heat one room now
- Add additional zones in the future
Upgrade your system as your needs grow
Design specifically for:
- DIY homeowners
- Remodels and additions
- Room-by-room radiant installations
- Budget-conscious builds
- Contractors who want flexibility
Install Your Way.
The Modular Control Panel System is designed for flexibility.
- Panels align perfectly for easy connections
- Use your preferred connection method (press, sweat, or push-to-connect)
- Mount panels side-by-side for a clean layout
System Capacity
- Supports up to 6 zones in standard configurations
- Ideal for homes, additions, garages, and workshops
- Can be adapted for larger systems with custom design
Designed for Serviceability
Everything is laid out for easy access:
- Individual panels can be serviced or replaced
- No cramped or hard-to-reach components
- Clear system layout for troubleshooting
Only Pay for What You Need
With traditional panels, you’re locked into a fixed configuration.
- No unused zones
- No unnecessary components
- No wasted cost
Installation and Setup Notes
Installation Notes: If you’re unsure what you need, our team can help design your system.
- Panels are connected during installation using your preferred fittings
- Purging may be completed at the boiler or manifold depending on system design
- System can be configured for primary/secondary applications if needed
Starter Kits (Recommended)
Everything you need for a complete system:
- 1-Zone
- 2-Zone
- 3-Zone
- 4-Zone
Individual Components
For expansion or custom setups:
- Master Control Panel
- Zone Pump Panels
- Control Relay Panels
Need Help Designing Your System?
Our team will help you:
Determine number of zones
Size your system correctly
Select the right components
